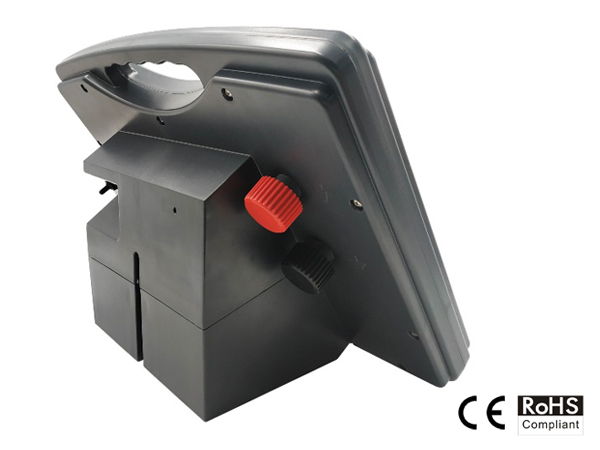

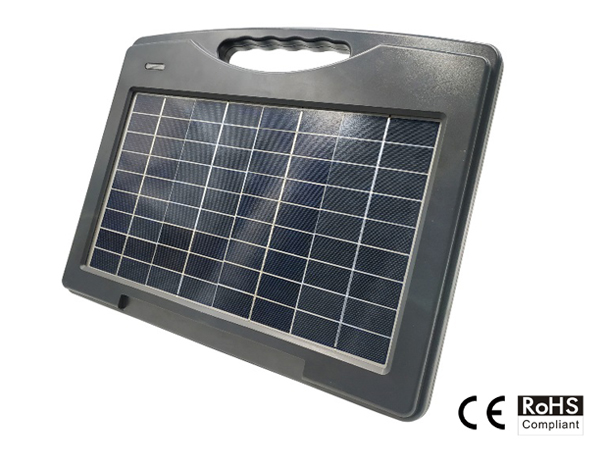

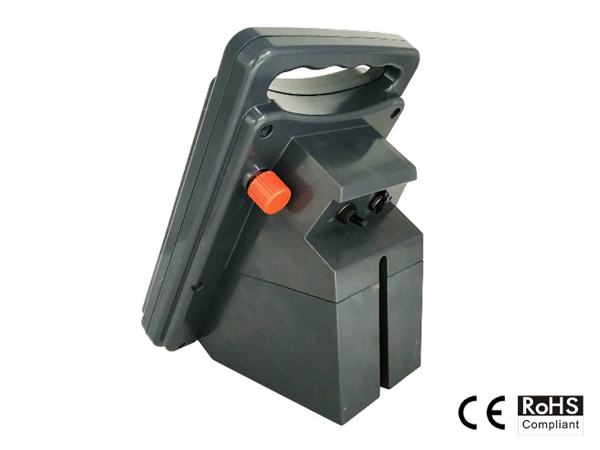

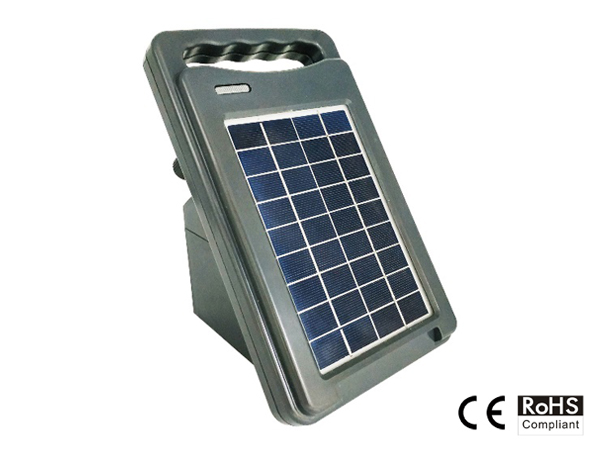

FM S Series, Solar Powered
Features & data
FM S Series, Solar Powered
  • Fully portable, all-in-one compact design, internal rechargeable battery and
    solar panel, convenient erection and operation
  • Solar panel laminated with tempered-glass for long service life
  • Working with rechargeable lead acid battery or lithium battery
  • Overcharge and lightning protected
  • Switch“on/off”and charging port is available on back
  • Multiple mounting options, 360 degree mounting on steel T, Y or wood post

  • Model         FM S10 S15 S50 S75
    Output Energy 0.1 J 0.15 J 0.5 J 0.75 J
    No-load Voltage,
    Max.
    7-8 kV 7-8 kV 8-10 kV 8-10 kV
    Output Voltage,
    @ 500 Ω
    2 kV 2 kV 4.5 kV 4.5 kV
    Effective Fence Length, Max.* 1 km 1.5 km 5 km 7.5 km
    Solar Panel 3W/9V, polysilicon
    laminated with
    tempered glass
    10W/18V, polysilicon laminated with
    tempered glass
    Battery Rechargeable lead acid battery 6V, 4.5AH Rechargeable lead acid battery 12V, 7AH
    Lightning Protection yes yes
    Overcharge protected protected
    * Optimal multi - steel wire fence
